RFI VEHICLE ANTENNAS

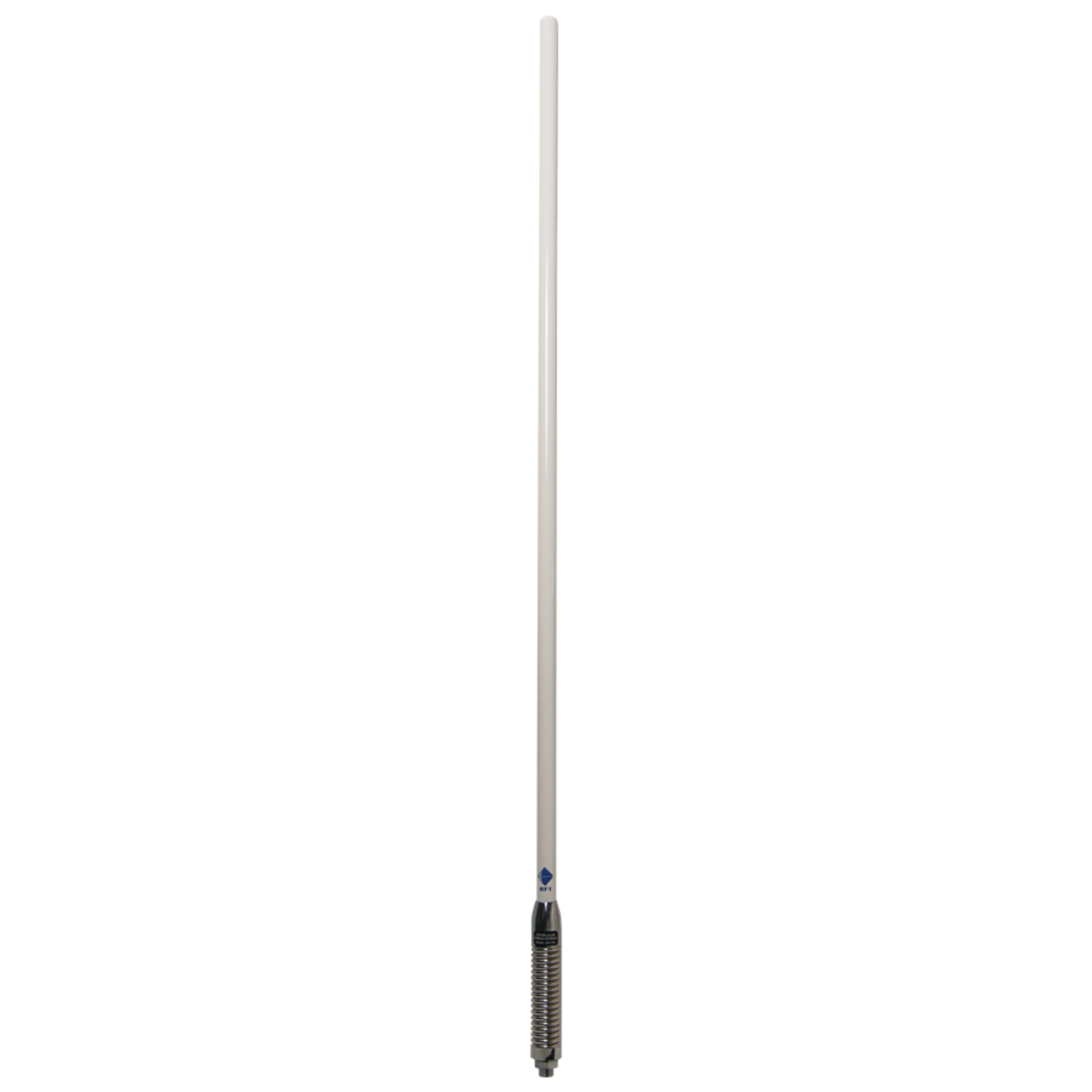

CD7195-W-SMA
RFI LTE 6.5dBi Collinear Antenna (698-2700 MHz); 5.0m SMA(M) – White
The evolution continues with the release of the CD7100 Series 4G LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
Packaging | Retail Bag |
Whip Material | Fibreglass radome |
Cable And Connector | 5m 9006 Low Loss Cable Terminated with SMA(M) Connector |
Frequency | 698-960 / 1710-2170 / 2300-2700 MHz |
Power w | 10 |
Nominal Gain Dbi | 6.5 / 4.5 / 5.5 |
VSWR | <2.5:1 |
Radome Diameter Mm | 15.6 |
Tuned bandwidth | Full |
Frequency MHz | 824-960, 1710-2170 |
Brand | RFI |
Height [mm] | 890 |
CD7195-B-SMA
RFI LTE 6.5dBi Collinear Antenna (698-2700 MHz); 5.0m SMA(M) – Black
The evolution continues with the release of the CD7100 Series 4G LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
Packaging | Retail Bag |
Whip Material | Fibreglass |
Cable And Connector | 5m 9006 Low Loss Cable Terminated with SMA(M) Connector |
Frequency Range | 1710 – 2170, 2300 – 2700, 698 – 960 |
Frequency | 698-960 / 1710-2170 / 2300-2700 MHz |
Power w | 10 |
Nominal Gain Dbi | 6.5 / 4.5 / 5.5 |
VSWR | <2.5:1 |
Radome Diameter Mm | 15.6 |
Tuned bandwidth | Full |
Frequency MHz | 698-960, 1710-2170 & 2300-2700MHz |
Brand | RFI |
Height [mm] | 890 |
CD7197-W-SMA
RFI LTE 7.5dBi Collinear Antenna (698-2700 MHz); 5m SMA(M) – White
The evolution continues with the release of the CD7100 Series 4G LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
Packaging | Retail Bag |
Whip Material | Fibreglass radome |
Cable And Connector | 5m 9006 Low Loss Cable Terminated with SMA(M) Connector |
Frequency | 698-960 / 1710-2170 / 2300-2700 MHz |
Power w | 10 |
Nominal Gain Dbi | 7.5 / 4.5 / 5.5 |
VSWR | <2.5:1 |
Radome Diameter Mm | 15.6 |
Tuned bandwidth | Full |
Frequency MHz | 824-960, 1710-2170 |
Brand | RFI |
Height [mm] | 1140 |

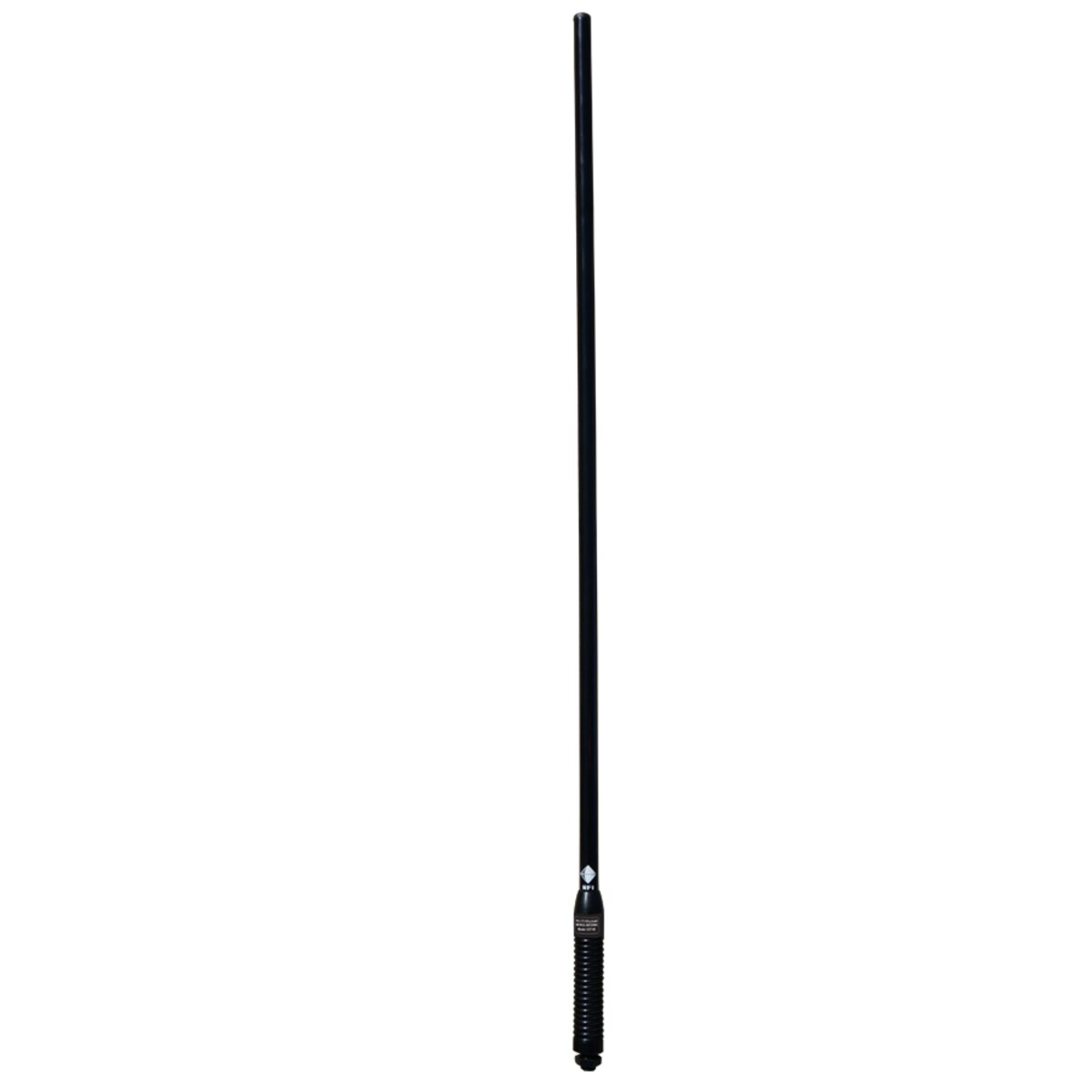

CD7197-B-SMA
RFI LTE 7.5dBi Collinear Antenna (698-2700 MHz); 5.0m SMA(M) – Black
The evolution continues with the release of the CD7100 Series 4G LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
Packaging | Retail Bag |
Whip Material | Fibreglass |
Cable And Connector | 5m 9006 Low Loss Cable Terminated with SMA(M) Connector |
Frequency | 698-960 / 1710-2170 / 2300-2700 MHz |
Power w | 10 |
Nominal Gain Dbi | 7.5 / 4.5 / 5.5 |
Polarisation | Linear |
VSWR | <2.5:1 |
Radome Diameter Mm | 15.6 |
Tuned bandwidth | Full |
Frequency MHz | 824-960, 1710-2170 |
Brand | RFI |
Height [mm] | 1140 |
