TOA PM660

TOA PM660

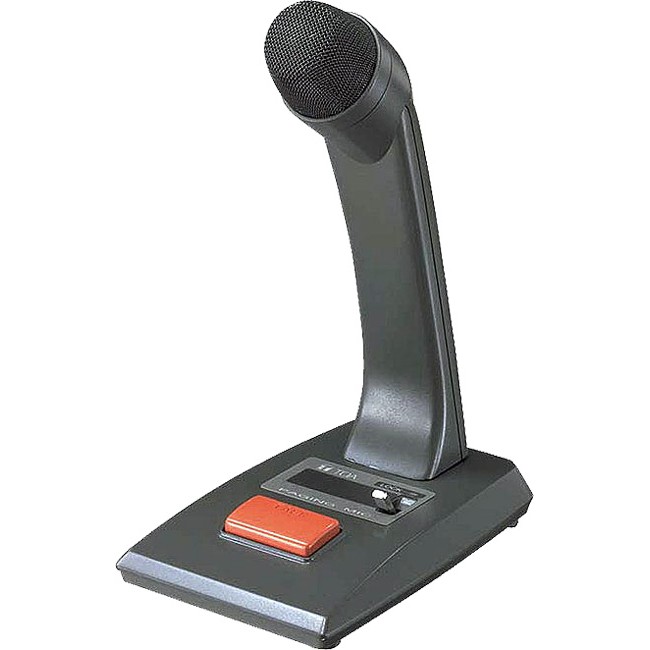

DESKTOP MICROPHONE TOA
2MT CABLE & 6.3MM PHONO PLUG

  • FEATURES
  •  Sleek, modern design fits today’s high tech workstations.
  • Dynamic microphone element with a 600 ohm balanced output.
  •  Prominent press-to-talk bar with convenient locking lever.
  •  Auxiliary switch contact for mute or relay circuits.
  •  Cardioid pattern with excellent ambient noise rejection.
  • Delivers a smooth and natural sound.
  •  Four conductor attached cable.
    SPECIFICATIONS
  • Directivity Unidirectional, cardioid pattern
  • Sensitivity (1 kHz) -58 dB*
  • Frequency Response 100Hz-10kHz
  • Microphone Element Dynamic (moving coil)
  • Impedance 600 ohm, balanced
    CONTROLS
  • Push-To-Talk Bar:
  • Microphone Normally closed (mic element shorted)
  • Auxiliary Switch Contact Normally open (dry contact)
  • Locking Lever Locks push-to-talk bar
    PHYSICAL
  • Cable Length Attached 8.2’ (2mt) with phono plug.
  • Cable Type 2-C shielded (audio) 2-C (aux switch)
    F i n i s h :
  • Microphone Head Zinc plated steel mesh, gray baked paint
  • Stand / Base Gray ABS resin
  • Dimensions W” x H” x D”) 3.9 x 8.5 x 5.9
    Weight (Ibs) 0 . 9 7
