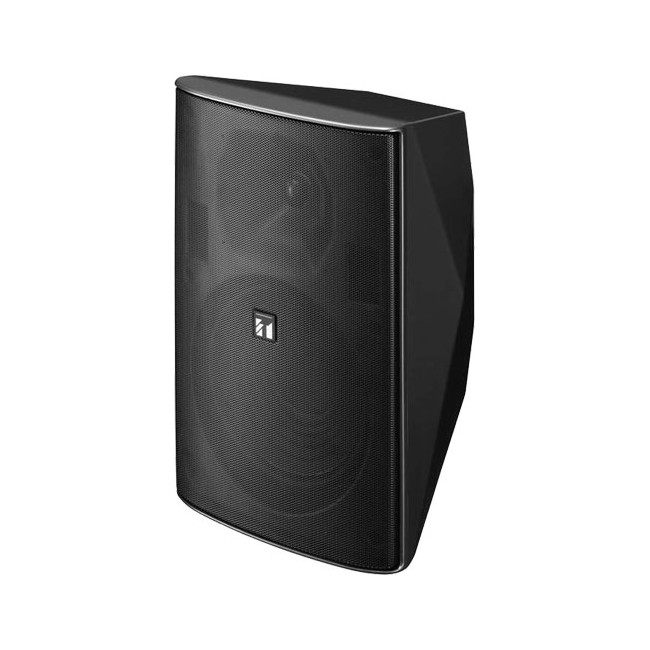

TOA F2000B

TOA F2000B
60W 8OHM/WIDE DISPERSION
BLACK PA SPEAKER – TOA

F SERIES WIDE-DISPERSION SPEAKER SYSTEM – Compact High Performance And Unmatched Installation Versatility – TOA

The new F-1000 and F-2000 Series speaker systems are designed to provide highquality sound and reliable performance for restaurants, retail and audio/visual applications.

Features include two-way bass-reflex design, high impact polystyrene enclosure with a 4” or 8” lowfrequency driver and dome tweeter.

For challenging acoustic environments, users can easily reduce the high frequency dispersion of F-2000 modelsby simply installing an included horn adapter.

Model options include 100V transformer or low impedance, black or white enclosures and indoor or weather-resistant versions. All models include a versatilewall/ceiling-mount bracket for easy installation.

All F-1000 and F-2000 Series models are backed with a five year warranty.

* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.

FEATURES:

The latest addition to TOA’s acclaimed speaker line, the new F-2000 andF-1000 Series of compact, high efficiency two-way speakersachieve higher performance levels for wide range frequencyresponse and power handling.

Designed to be extremely versatile in order to meet different installation and application requirements, the new F-2000 and F-1000 Series are ideal solutions that solve increasing needs for adaptable sound.

They are available in black or white and high or low impedance versions

  • Available as low impedance (F2000B/F2000W) or 100 volt line (F2000BT/F2000WT) versions
  • 110° x 100° dispersion Octagon high-frequencyHorn ensures an enhanced sound coverage area and a more even, balanced tone.
  • Easily-mountable 80 degree x 80 degree dispersion angle horn adapter included on the F-2000 for increased dispersion control.
  • Available in an IP-X4, weather resistant version – 100 volt line only (F2000BTWP black or F2000WTWP white)
  • All speaker models are paintable.
  • Low impedance models have high and low frequency filter and protection circuitry.
  • Included bracket allow a wide choice of installations on walls and ceilings
  • Optional brackets meet an even wider variety of installation demands, including a cluster bracket
  • Stylish and highly rigid casing design for attractive installation with clearer sound reproduction.
  • Power Handling
  • Low Impedance 180 watts continuous program
  • 100 Volt Line 60 watts
  • Sensitivity: 92 dB, 1W/1m or 93dB with 80 x 80 hornadaptor

APPLICATIONS:

  • Audio/Visual
    Airports
  • Bars/Lounges/Nightclubs
  • Convention Centers
  • Corporate Boardrooms
  • Hotels/Hospitality
  • Houses of Worship
  • Museums
  • Offices
  • Patios
  • Residential Spaces
  • Restaurants
  • Retail Stores
  • Schools
  • Theaters
  • Theme Parks

SPECIFICATIONS:

F-1000 Series:

  • LF Driver: 4” cone woofer
  • HF Driver: Balanced-dome tweeter
  • Crossover: 5kHz
  • Power Handling:
    • 90W (cont. PGM)
    • 30W (pink noise)
    • 15W (100V transformer version)
  • Sensitivity (1W, 1m): 87dB SPL
  • Dispersion: 90° H x 90° V

Available Models:

  • F-1000B (indoor, black, 8 ohm)
  • F-1000W (indoor, white, 8 ohm)
  • F-1000BT (indoor, black, 100V)
  • F-1000WT (white, 100V)
  • F-1000BTWP (outdoor, black, 100V)
  • F-1000WTWP (outdoor, white, 100V)

F-2000 Series

  • LF Driver: 8” cone woofer
  • HF Driver: 1” hard-dome tweeter
  • Crossover: 2.5kHz
  • Power Handling:
    • 180W (cont. PGM)
    • 60W (pink noise)
    • 60W (100V transformer version)
  • Sensitivity (1W, 1m): 93dB SPL
  • Dispersion (adjustable):
    • 110° H x 100 ° V
    • 80° H x 80° V

Available Models:

  • F-2000B (indoor, black, 8 ohm)
  • F-2000W (indoor, white, 8 ohm)
  • F-2000BT (indoor, black, 100V)
  • F-2000WT (indoor, white, 100V)
  • F-2000BTWP (outdoor, black, 100V)
  • F-2000WTWP (outdoor, white, 100V)
