TOA PM660U

TOA PM660U
DESKTOP MICROPHONE
UNWIRED / NO PLUG – TOA

PM660U

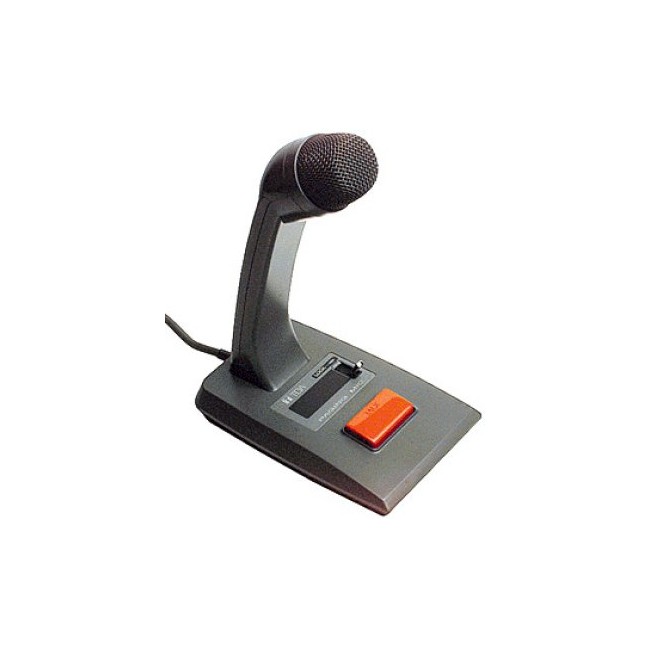

Desktop Paging Microphone

  • Desktop type dynamic microphone with cardioid polar pattern.
  • Short-off press to talk switch with open OFF type extra switch contact.
  • Low handling noise.
  • 600 Ω balanced output impedance.
  • 2.5m 4-conductor (included twin-core shielded) cablewithout plug.
  • Can be remotely operated with additional components such as priority and transmitting / receiving relays

Specification

  • Type Desktop moving coil microphone.
  • Polar Pattern Cardioid (Unidirectional).
  • Output Impedance at 1kHz 600 O, balanced.
  • Rated Sensitivity -58dB (1kHz, 0dB=1V/Pa)
  • Frequency Response 100 ~ 10,000Hz
  • Cable 2 core shielded plus 2 core cable.
  • Cable Length 2.5m
  • Terminal of Cable None.
  • Talk Switch Push to talk type (short-off circuit with lock lever).
  • Remote Switch Leaf spring contact (interlocked with talk switch).
  • Dimensions (W x H x D) 100 x 215 x 150mm
  • Weight 440g
  • Finish Head; Zinc plated steel wire, baked painting, Grey / Body; ABS resin, Grey.
